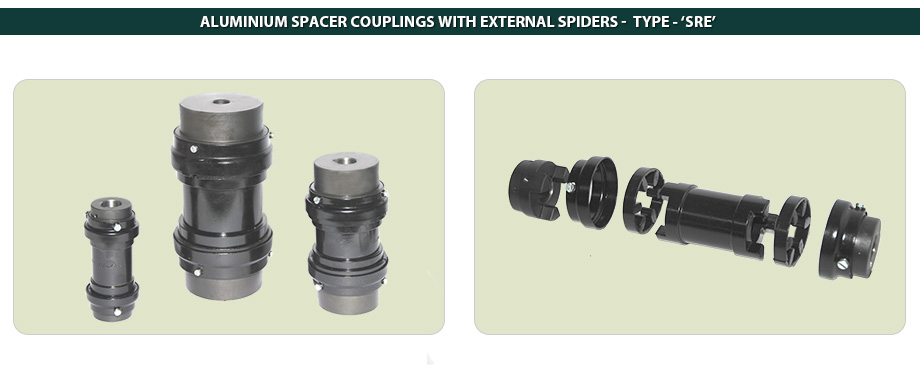

We are Manufacturer, Supplier, Exporter & Services of Aluminium Spacer Couplings With External Spider, SRE Type Couplings and our setup is situated in Pune, Maharashtra, India. |
 |
| |
| • Spacer coupling with easy to remove snap design. |
| |
| • Suitable for back pull out design pumps. Spacer of Aluminum to reduce load on the extended shafts. |
| |
| • Can take larger mis - alignments because of two flexible membranes. |
|
| |
| |
 |
|

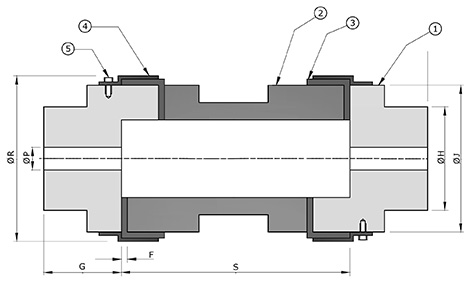

| SR.NO |
PART NAME |
MATERIAL |
| 1 |
Coupling Hub |
Cast Iron ( GG 25 ) |
| 2 |
Spacer |
Aluminium ( LM4 ) |
| 3 |
Snap / External Spider |
Nitrile Rubber |
| 4 |
Retainer Ring |
MS |
| 5 |
Set Screw |
MS |
|
|
| |
| |
|
| SIZE |
RATED HP AT RPM |
RATED TORQUE |
BORE SIZE Ø P |
JAW DIA. |
RING DIA. |
HUB DIA. |
LENGTH THROUGH |
SPACER LENGTH |
GAP BET. |
WEIGHT OF PILOT COUPLING |
|
| |
1000 |
1500 |
3000 |
kg-m |
PILOT |
MAX. |
Ø J |
Ø R |
Ø H |
BORE G |
S |
JAW & BODY F |
FOR SPACER LENGTH KG. |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
90 |
100 |
140 |
180 |
| 95 |
2.8 |
4.2 |
8.4 |
2.00 |
10 |
28 |
54 |
66 |
49 |
25 |
90/100 |
2 |
1.20 |
1.25 |
- |
- |
| 100 |
6.0 |
9.0 |
18.0 |
4.29 |
10 |
38 |
65 |
76 |
57 |
35 |
90/100/140 |
2 |
2.02 |
2.05 |
2.20 |
- |
| 110 |
11.0 |
16.5 |
33.0 |
7.87 |
15 |
42 |
85 |
98 |
76 |
43 |
90/100/140 |
3 |
4.16 |
4.25 |
4.56 |
- |
| 150 |
17.0 |
25.5 |
51.0 |
12.17 |
15 |
48 |
96 |
111 |
80 |
45 |
90/100/140/180 |
3 |
5.26 |
5.35 |
5.70 |
6.02 |
| 190 |
22.0 |
33.0 |
66.0 |
15.75 |
20 |
60 |
115 |
129 |
102 |
54 |
90/100/140/180 |
3 |
8.10 |
9.20 |
9.80 |
10.40 |
| 225 |
33.0 |
49.5 |
99.0 |
23.62 |
20 |
65 |
127 |
142 |
108 |
64 |
90/100/140/180 |
3 |
11.80 |
12.03 |
12.76 |
13.40 |
| All dimensions in mm |
|
| |
| |
|
|
| |
| |
|
