We are Manufacturer, Supplier, Exporter & Services of External Spider Couplings, SE Type Couplings and our setup is situated in Pune, Maharashtra, India.

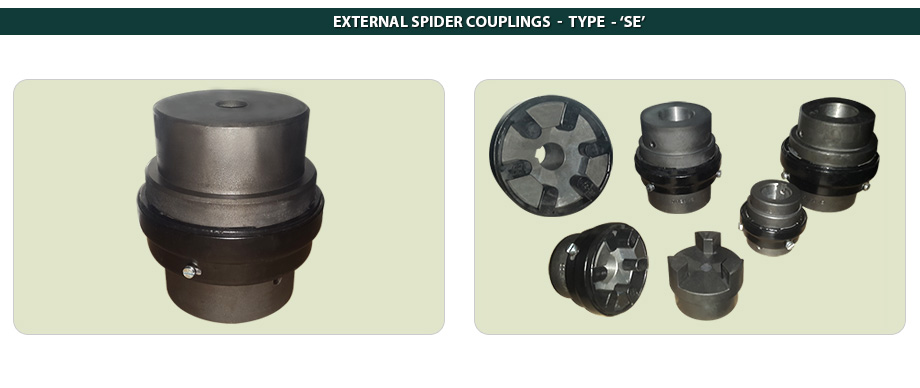

External Spider Couplings

• Instead of a star, a strip/snap is provided which fits in the coupling from outside and can be replaced without disturbing the driver & driven unit.

• Practically no down time for replacement/inspection of the strip.

• A seamless retainer ring provided for proper location & stability of snap.

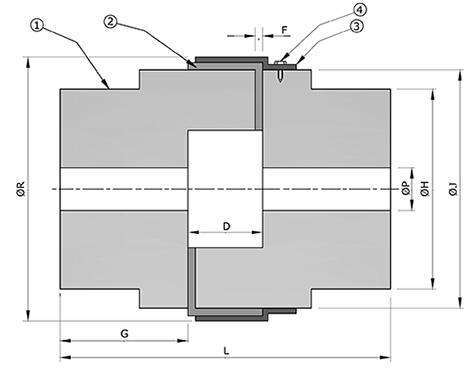

type se drawing
PART LIST
SR.NO PART NAME MATERIAL
1 Coupling Hub Cast Iron ( GG 25 )
2 Snap/External Spider Nitrile Rubber
3 Retainer Ring MS
4 Set Screw MS


TYPE - SE
SIZE RATED HP AT RPM RATED TORQUE BORE SIZE Ø P JAW DIA. RING DIA. HUB DIA. TOTAL LENGTH THROUGH GAP BET. DIST.
BETWEEN
WEIGHT PILOT COUPLING
  1000 1500 3000 kg-m PILOT MAX. Ø J Ø R Ø H LENGTH L BORE   G JAW & BODY  F SHAFTS
D
(APPROX)KG

95 2.8 4.2 8.4 2.00 10 28 54 66 49 63 25 2 13 0.85
99 4.0 6.0 12.0 2.86 10 30 65 76 51 72 27 3 18 1.25
100 6.0 9.0 18.0 4.29 10 38 65 76 57 88 35 3 18 1.6
110 11.0 16.5 33.0 7.87 15 42 85 98 76 108 43 3 22 3.35
150 17.0 25.5 51.0 12.17 15 48 96 111 80 115 45 3 25 4.3
190 22.0 33.0 66.0 15.75 20 60 115 129 102 133 54 3 25 7.65
225 33.0 49.5 99.0 23.62 20 65 127 142 108 153 64 3 25 10.15
All dimensions in mm
