We are Manufacturer, Supplier, Exporter & Services of CI Spacer Couplings, SR Type Couplings and our setup is situated in Pune, Maharashtra, India.

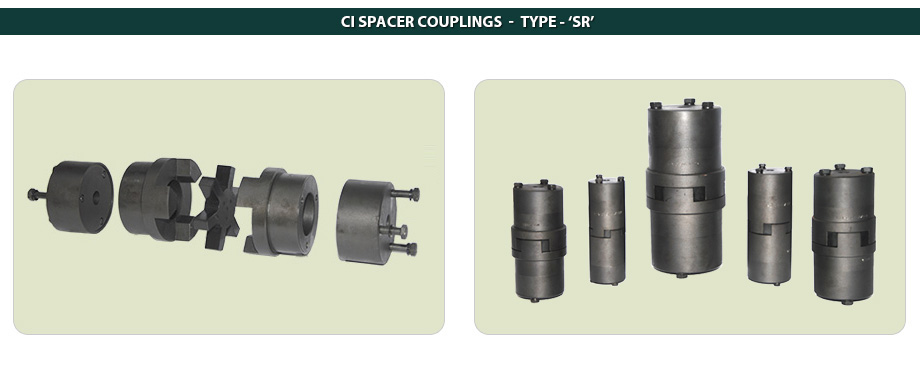

CI Spacer Couplings

• Spacer coupling with star / spider design.

• Recommended specially for back pull out pumps & when the distance between shafts is more than the standard.

• Easy replacement of spider without removing equipment from base. Thus less down time. H. T. fastners used.

• Capacity up to 24 kg-m of torque.

• Available in various spacer lengths of 75,90,100,135,140,180 mm.

• Also recommended where disconnection of driver & driven is required.


SR Type Couplings

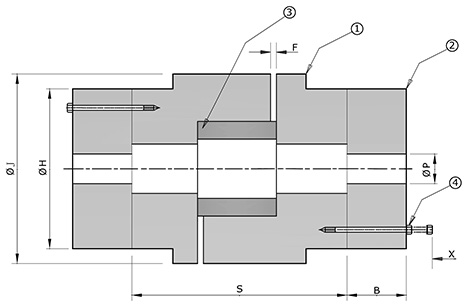

PART LIST
SR.NO PART NAME MATERIAL
1 Spacer Cast Iron ( GG 25 )
2 Bush / Hub Cast Iron ( GG 25 )
3 Star / Spider Nitrile Rubber
4 Hex / Bolt High Tensile Alloy steel
( with spring washer )


TYPE - SR
SIZE RATED HP AT RPM RATED TORQUE BORE SIZE Ø P JAW DIA. HUB/ BUSH DIA. BUSH SPACER LENGTH GAP BET. BOLT SIZE FOR BOLT WEIGHT OF PILOT COUP.(CI)
  1000 1500 3000 kg-m PILOT MAX. Ø J Ø H LENGTH B S JAW & BODY  F STD COUP/
(TRI COUP)*		 EXTN. X FOR SPACER LENGTH
                            90 100 140 180
95 2.8 4.2 8.4 2.00 10 28 54 54 25.5 75/90/100 2 M 6 x 40 15 1.8 1.9 - -
100 6.0 9.0 18.0 4.29 10 38 65 65 30.5 75/90/100/135/140 2 M 6 x 45 15 2.7 2.9 3.5 -
110 11.0 16.5 33.0 7.87 15 42  /24* 85 76 35.5 75/90/100/135/140 3 M8 x 55
(M8 x 35)*		 20 4.2 4.4 5.3 -
150 17.0 25.5 51.0 12.17 15 48  /32* 96 90 45.5 90/100/135/140/180 3 M10 x 65
(M10 x 40)*		 20 6.7 7.1 8.2 9.4
190 22.0 33.0 66.0 15.75 20 55  /38* 115 102 51.5 90/100/135/140/180 3 M10 x 75
(M10 x 40)*		 24 9.5 10 11.5 13.1
225 33.0 49.5 99.0 23.62 20 65  /42* 127 115 57.5 90/100/135/140/180 3 M12 x 80
(M12 x 45)*		 24 12.7 13.3 15.4 17.5
* For Triangular bush
All dimensions in mm
