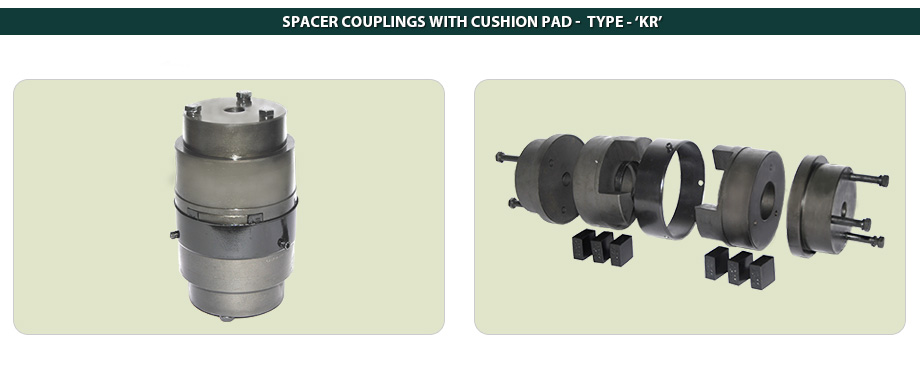

We are Manufacturer, Supplier, Exporter & Services of Spacer Couplings With Cushion Pad, KR Type Couplings and our setup is situated in Pune, Maharashtra, India. |
 |
| |
| • Suitable for torques upto 215 kg - m. |
| |
| • Convenient pad type design for easy removal / replacement of rubber elements. |
| |
| • Spacer design advantages for back pull out type pumps & where driver needs to be disconnected. |
|
| |
| |
 |
|

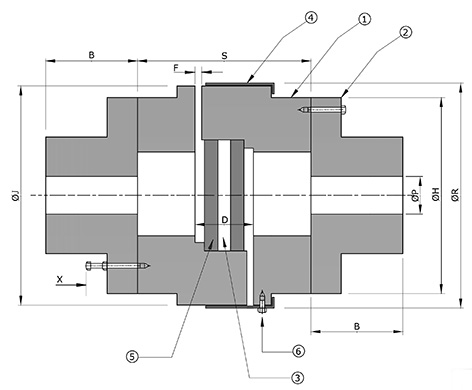

| SR.NO |
PART NAME |
MATERIAL |
| 1 |
Spacer |
Cast Iron ( GG 25 ) |
| 2 |
Bush |
Cast Iron ( GG 25 ) |
| 3 |
Pad |
Nitrile Rubber |
| 4 |
O.D.Ring |
MS |
| 5 |
I. D. Ring |
MS |
| 6 |
Grub Screw |
HT |
|
|
| |
| |
|
| SIZE |
RATED HP AT RPM |
RATED TORQUE |
BORE SIZE Ø P |
JAW DIA. |
RING DIA. |
HUB/ BUSH DIA. |
BUSH |
SPACER LENGTH |
GAP BET. |
DIST.
BETWEEN |
BOLT |
WEIGHT OF PILOT COUPLING (CI) |
| |
1000 |
1500 |
3000 |
kg-m |
PILOT |
MAX. |
Ø J |
Ø R |
Ø H |
LENGTH B |
S |
JAW & BODY F |
SHAFTS D |
EXTN. X |
FOR SPACER LENGTH KG. |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
140 |
180 |
| 226 |
46.0 |
69.0 |
138.0 |
32.93 |
25 |
65 |
137 |
142 |
134 |
50.5 |
100/135/140/180 |
3 |
38 |
30 |
19.95 |
23.05 |
| 276 |
73.0 |
109.5 |
219.0 |
52.26 |
25 |
75 |
157 |
162 |
154 |
60.0 |
100/135/140/180 |
3 |
40 |
20 |
26.2 |
30.5 |
| 280 |
110.0 |
165.0 |
330.0 |
78.76 |
30 |
80 |
192 |
198 |
189 |
60.5 |
135/140/180 |
3 |
40 |
- |
33.1 |
38 |
| 295 |
180.0 |
270.0 |
540.0 |
128.88 |
30 |
95 |
237 |
241.6 |
234 |
65.5 |
135/140/180 |
3 |
48 |
- |
53 |
56.5 |
| 2955 |
300.0 |
450.0 |
900.0 |
214.80 |
30 |
100 |
237 |
241.6 |
234 |
80.5 |
135/140/180 |
3 |
48 |
- |
57 |
61.6 |
| All dimensions in mm |
|
| |
| |
|
|
| |
| |
|
