We are Manufacturer, Supplier, Exporter & Services of Flange Type Couplings, Coupling Manufacturer, SN, SEN, KN Type Coupling and our setup is situated in Pune, Maharashtra, India.

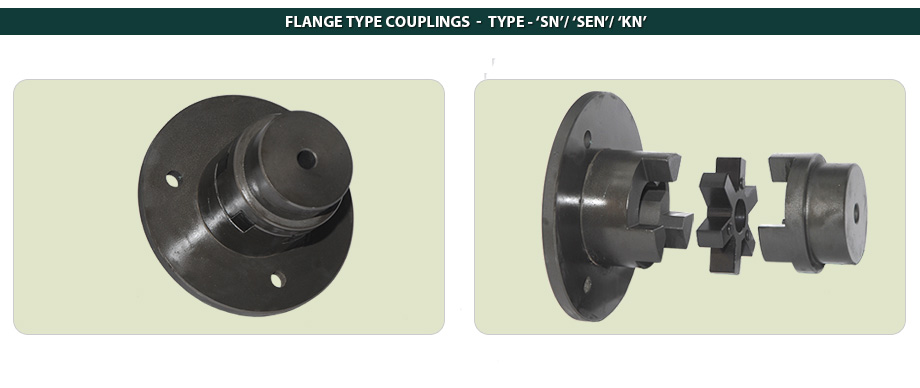

Flange Type Couplings

• Specially designed for engine - pump set / genset applications.

• Easy fitting & removal. The coupling flange fits directly on the engine fly wheel with SAE dimensions.

• All sizes from types S, SE, & K are available. Torques up to 435 kg - m.

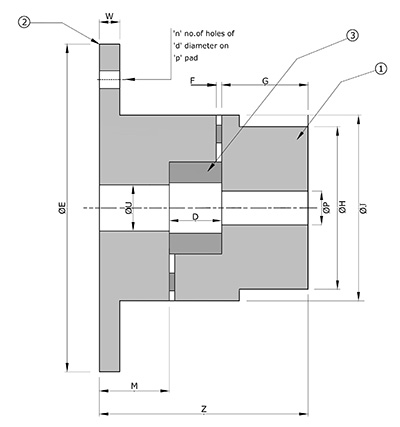

type sn drawing
PART LIST
SR.NO PART NAME MATERIAL
1 Coupling Hub Cast Iron ( GG 25 )
2 Flanged Coupling Hub Cast Iron ( GG 25 )
3 Star/ Spider Nitrile Rubber


TYPE - SN /SEN*
SIZE BORE SIZE Ø P TORQUE JAW DIA. RING DIA. HUB DIA. TOTAL LENGTH THRO' GAP BET.JAW WEIGHT OF PILOT  FLANGE DETAILS   LENGTH THROUGH
  PILOT MAX. KG-M ØJ Ø R * ØH LENGTH  Z BORE   G  & BODY  F  BORE COUP.(CI) kg. DIA.OF FLANGE PCD OF HOLES NO.OF HOLES DIA. OF HOLES BORE ON FLANGE  M
                        ØE p n d
150 15 48 12 96 111 80 122 45 3 5.8 190 163.5 3 15 52
190 20 60 16 115 129 102 135 54 3 9.2 190 163.5 3 15 56

DIST. BET. FLANGE FLANGE
SHAFTS D THICKNESS  W BORE ØU
20 12 48
24 16 48
